Product Details:
|
| Model NO.: | ZZ3247M3811 | Emission Standard: | Euro 2 |
|---|---|---|---|
| Drive Wheel: | 6×4 | Engine Capacity: | ＞8L |
| Seats: | ≤5 | Horsepower: | 351-450hp |
| Tire Certification: | GCC, ISO | Tire Design: | Radial |
| Dumping Type: | Front Lifting Style | Condition: | Used |
| Product Name: | Used Dump Truck | Transport Package: | Nude |
| Specification: | 5600x2300x1500 | Trademark: | HOWO |
| Origin: | Shandong | HS Code: | 8704109000 |
| Supply Ability: | 5000 |

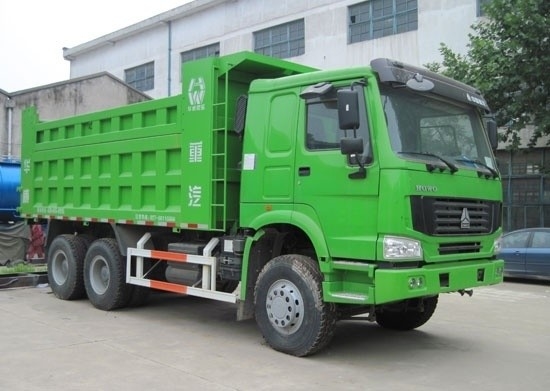

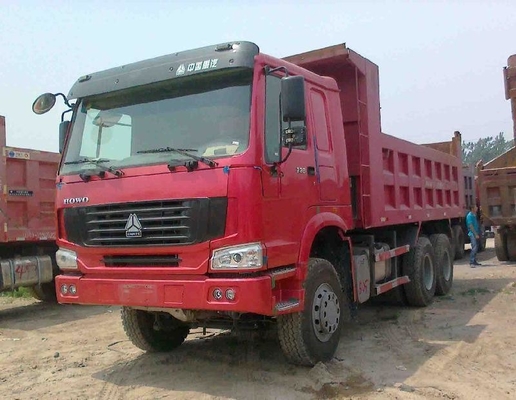

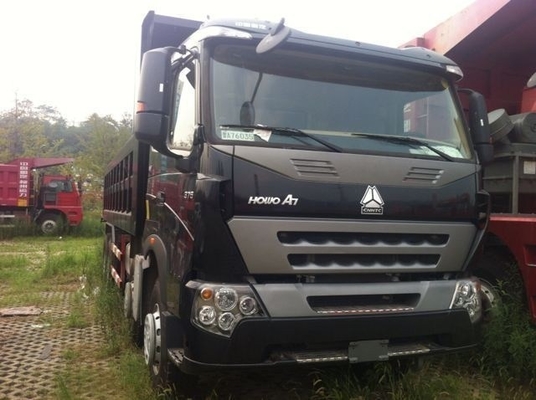

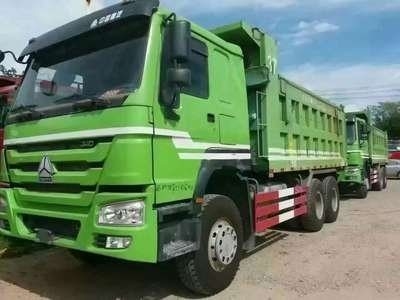

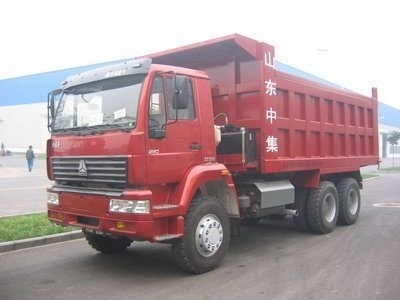

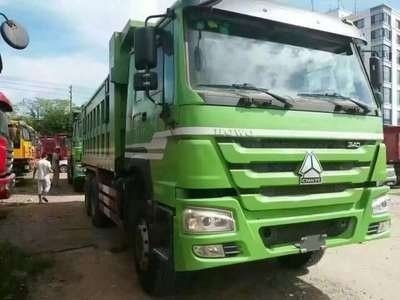

| HOWO 6×4 Dump Truck | |
| Driving Type | Left Hand Driving |
| Cabin | HW76 |
| Engine | Make: SINOTRUK wd615.47 |
| Transmission | HW19712, 12F & 2R, with PTO |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assitance |
| Front Axle | HF9 SSteering with doubleT-cross section beam |
| Rear Axle | AC16, 2×16000 KGSPressed axle housing, central single reduction with hub
reduction and with differential locks between wheels and axles.Ratio:5.73 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced
sub-frame all cold riveted cross members Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brakeParking brake (emergency brake):
spring energy, compressed air operating on front shaft and rear wheelsAuxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V,
5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires | 12.00r20, radial tires with one spare tire. |
| Fuel Tank | 300 L |
| Cargo Body | 5600*2300*1500 mm, Floor 8 mm and side 6 mm, |
| Overall Dimension | 8200*2550*3500 mm |
