Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610

All Products

Truck Engine Parts

(1076)

Truck Cabin Parts

(245)

Truck Air Brake System

(126)

Truck Suspension Parts

(33)

Truck Chassis Parts

(42)

Sinotruk Howo Tractor Truck

(23)

Truck Engine Accessories

(131)

Propeller Shaft Clutch

(63)

Truck Electrical Parts

(15)

Truck Steering Pump

(22)

Trailer Axles Parts

(17)

Truck Gearbox Parts

(62)

Sinotruk Howo Dump Truck

(62)

Truck Tail Lights

(14)

Heavy Duty Trailer Truck

(17)

SINOTRUK HOWO Truck Parts

(19)

SHACMAN Truck Parts

(36)
Certification
China Jinan Belt-Way truck part Co., Ltd certification
China Jinan Belt-Way truck part Co., Ltd certification
I'm Online Chat Now

Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610

Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610
Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610

Large Image :  Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610

Product Details:
Place of Origin: China
Certification: ISO9001
Payment & Shipping Terms:
Delivery Time: Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, Western Union
Contact Now

Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610

Description
Model NO.: Hw19710 Applicable Truck: Shacman F3000/F2000, HOWO
Engine Model: Wp10/Wp12 Engine Brand: Weichai
MOQ: 1 Set Delivery: 3-7 Days
Payment: T/T, Western Union Package: Export Packing
Driving System Parts: Wheel Electrical System Parts: Battery
Brake System Parts: Brake Transmission System Parts: Gearbox
Steering System Parts: Steering Gear Color: Silver
Main Market: South Asia Warranty: Online Support
After-sales Service: Online Support Transport Package: Wooden Box
Specification: Standard Trademark: Original
Origin: Jinan HS Code: 8708931000
Supply Ability: 50000 Package Size: 100.00cm * 50.00cm * 80.00cm
Package Gross Weight: 150.000kg Lead Time: 15 Days (1 - 100 Pieces) To Be Negotiated ( > 100 Pieces)
Type: Engine Product Name: Fuel Injection Pump
Part Number: 612601080397 Shipping Cost: Contact The Supplier About Freight And Estimated Delivery Time.
 : Support Payment In USD Secure Payments: Every Payment You Make At Made-in-china.com Is Protected By The Platform.
Refund Policy: Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

Hw19710 Sino truck HOWO Truck Parts Transmission Hw19710090610

Tech Parameters

Transmissiom Model

HW19710

Installation Length

843

Type

10 forward gears, 1 reverse gear (Three section shell)

Max Input Torque

1900N.m

Maximum Output Speed

2600rpm

Gearbox Ratios

Gears

Speed Ratio

Gears

Speed Ratio

1

14.28

6

3.26

2

10.62

7

2.43

3

7.87

8

1.8

4

5.87

9

1.34

5

4.375

10

1



Reverse Gear

13.91



Lubrication

Splash lubrication of main tank, forced lubrication of secondary tank

Lubricant Grade

85W/90GL-4 or 85W/90GL-5

Fuel Quantity

12L (12.5L if including the PTO)

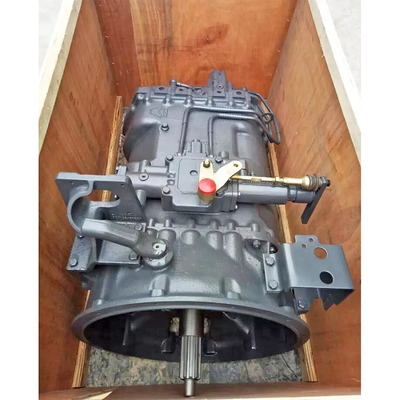

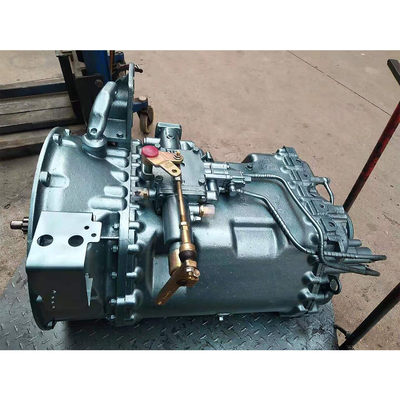

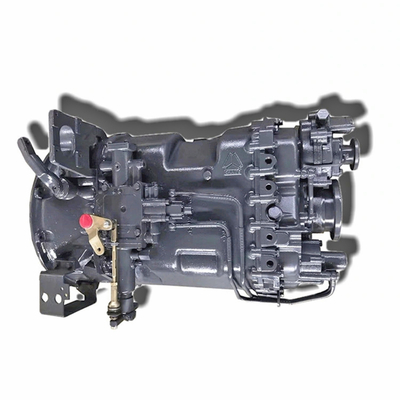

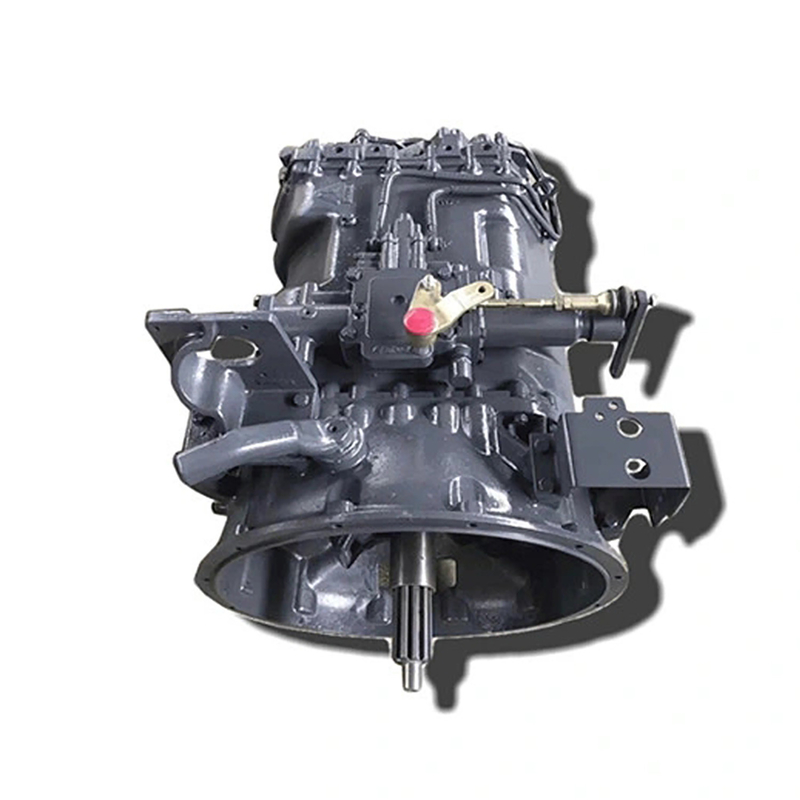

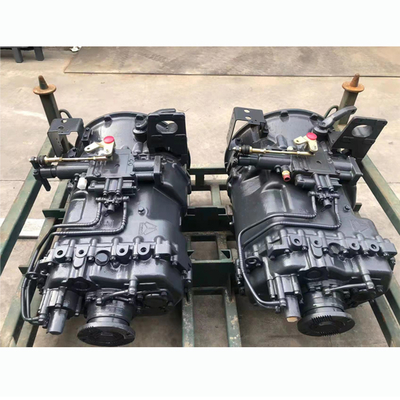

HW19710 Transmission/Gearbox Assy Display
Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 0Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 1
Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 2
Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 3Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 4Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 5Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 6HOWO 50 PTO-WG9700290010Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 7
 Engine Spare Parts
Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 8Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 9Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 10Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 11
Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 12What can we supply?
1.Sinotruk/Weichai engine parts
Crankshaft, connecting rod, cylinder block, cylinder head, piston,flywheel, cylinder liner,piston ,piston rings, piston
pin,connecting rod,bearing, crankshaft bearing ,intake&exhaust valve, valvesprings,camshaft, tappets, camshafts bearing, fuel
tank, fuel pump, fuel filter,air filter, oil filter, battery,alternator, starter, starter motor, ignition coil,water pump,
radiator, fan couplings, fan, thermostat, oil pump,pressure limiting valve ..
Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 13
2.Sinotruk/FAST Gearbox Parts
Primary shaft, 2nd shaft, intermediate shaft, 2 / 3 associated gear,2nd speed gear(1/2/3/4/5) , reverse gear ,intermediate
shaft(1/2/3/4/5),synchronize assembly, synchronizer slider,gearbox ,gearbox shell, gearbox cover, gearbox middle cover, shift fork
assembly, PTO...
Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 14
3.Chassis parts/ Cabin parts
Clutch cover, clutch disk , wheel hub, brake drum, brake pads ,Brake shoes, lock, wiring harness, drive shaft, front axle,
steering knuckle,steering arm, universal joints, rear axle , main reducer,differential,axle, planetary gears, sun gear, pinion and
bevel gear, spring, shock absorbers, stabilizer bars,steering pole, straight rod, rod joint, wheel reducer, through axle, rear
shell ... ..
Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 15
Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 16Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 17
Workshop
Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 18Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 19
Our Company

Belt Way International Trading Co.,Ltd. was founded in 2008. Specializing in the production and sales of various auto parts. With the spirit of continuous innovation and excellent technical concept, Beltway focuses on the development and improvement of products, and is committed to providing the best quality products to meet the various needs of customers. Technology creates the Future,.look forwarding your inquiry.
Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 20
Certificates


Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 21

 Packaging & Delivery

Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 22
Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 23
Weichai Engine 612601080397 Hw19710 Sino Truck HOWO Truck Parts Transmission Hw19710090610 24FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in Carton boxes and then in wooden case.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CPT, CIF.
Q4. How about your delivery time?
A: Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?

Вопрос: каковы ваши условия упаковки?
A: Как правило, мы упаковываем наши товары в нейтральные коробки и коричневые коробки. Если у вас есть законно зарегистрированный патент,
мы можем упаковать товар в ваши фирменные коробки после получения ваших авторизационных писем.
Q. как насчет вашего времени доставки?
A: Как правило, это занимает от 15 до 30 дней после получения авансового платежа. Конкретное время доставки зависит
на предметы и количество вашего заказа.
Q. Можете ли вы производить по образцам?
A: Да, мы можем изготовить по вашим образцам или техническим чертежам. Мы можем построить формы и приспособления.
Q. Проверяете ли вы все свои товары перед доставкой?
A: Да, у нас есть 100% тест перед доставкой
Вопрос: как вы делаете наш бизнес долгосрочные и хорошие отношения?
A: 1. Мы сохраняем хорошее качество и конкурентоспособные цены, чтобы обеспечить нашим клиентам выгоду;
2. Мы уважаем каждого клиента как нашего друга, и мы искренне ведем дела и дружим с ними,независимо от того, откуда они берутся.
