Product Details:
|
| Model NO.: | Wd615.47 | Speed: | High Speed |
|---|---|---|---|
| Cooling Cylinder: | Water-Cooled | Intake Pressure Impulse: | Supercharged |
| Piston Movement: | Reciprocating | Fuel: | Diesel |
| Number Of Strokes: | Four-Stroke | Cylinder Arrangement Form: | W |
| Number Of Cylinders: | 6-Cylinder | Type: | Electric Motor |
| Engine Net Weight: | 850kg | Max Horse Power: | 371HP/273kw |
| Displacement: | 9.726L | Emission: | Euro2 |
| Valve / Cylinder: | 2 | Compression Ratio: | 17:1 |
| Rated Speed(R/Min): | 2200 | Max. Torque(N.M): | 1500 |
| MOQ: | 1 | Payment: | Tt 30% In Advance |
| Delivery: | 3-7 Days | Transport Package: | Cartons |
| Specification: | 1052x544x808mm | Trademark: | Belt-Way |
| Origin: | China | HS Code: | 84262000 |
| Supply Ability: | 10000pieces/Year | Package Size: | 1.80cm * 1.20cm * 1.20cm |
| Package Gross Weight: | 1000.000kg | After-sales Service: | Online Support |
| Warranty: | Online Support | Ignition Mode: | Electric Ignition |
| Shipping Cost: | Contact The Supplier About Freight And Estimated Delivery Time. | : | Support Payment In USD |
| Secure Payments: | Every Payment You Make At Made-in-china.com Is Protected By The Platform. | Refund Policy: | Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |

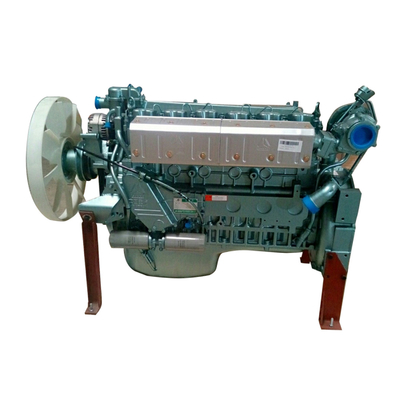

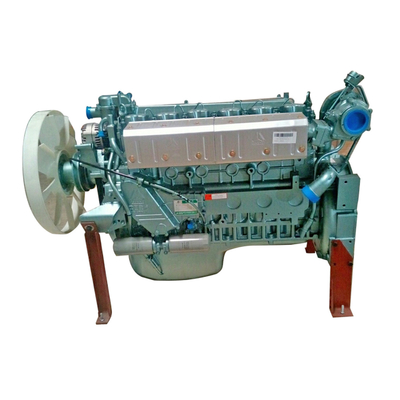

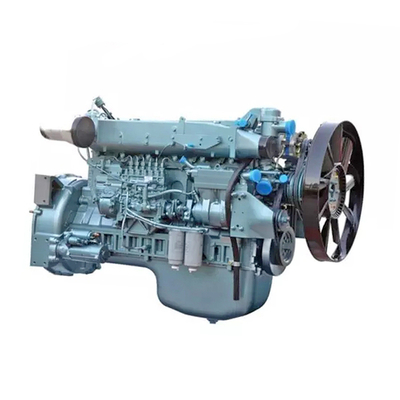

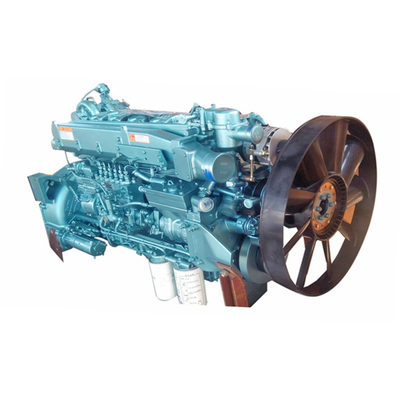

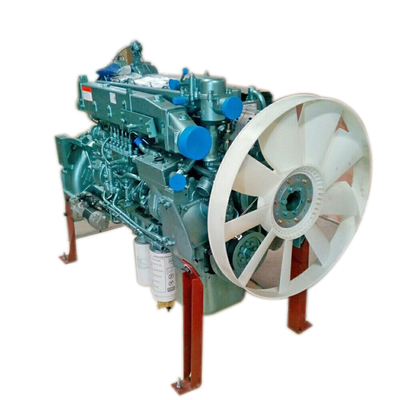

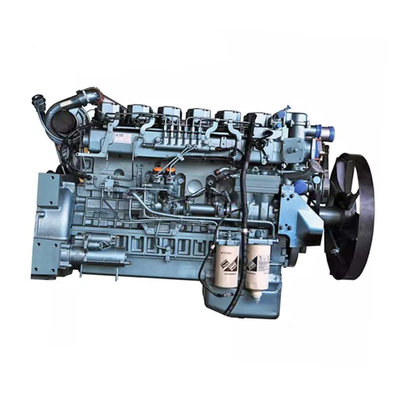

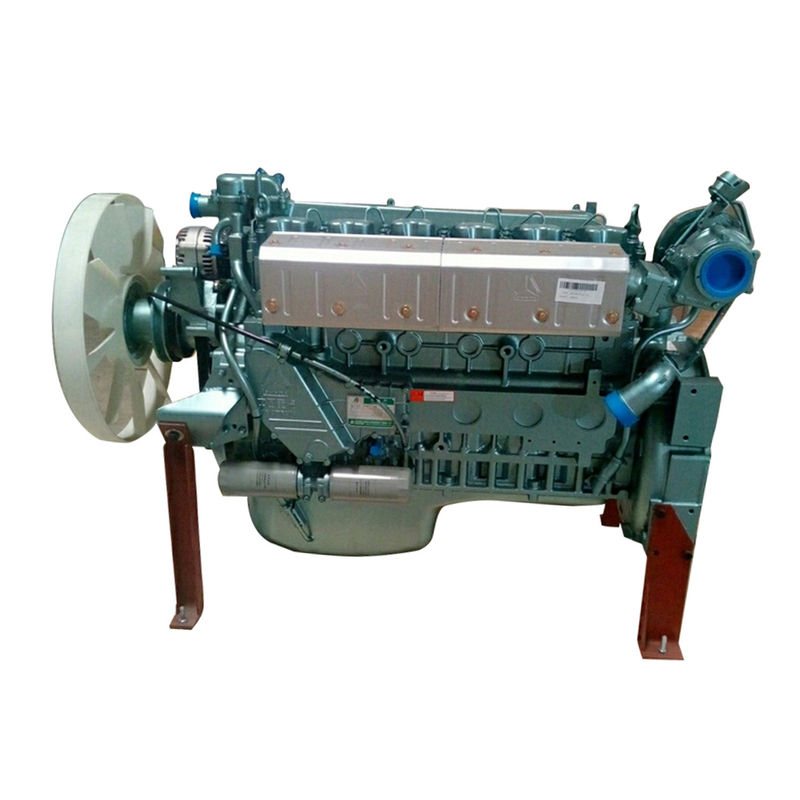

OEM New Sinotruk HOWO Dump Truck and Tractor Truck Engine Assy Wd615.47 Diesel Engine 371HP
| Model | WD615.62 | WD615.87 | WD615.69 | WD615.47 | WD615.57 |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection | ||||
| Ignition sequence | 1-5-3-6-2-4 | ||||
| Valve / Cylinder | 2 | 4 | |||
| Distance between cylinder core(mm) | 150 | ||||
| Bore & Stroke(mm) | 126×130 | ||||
| Displacement(L) | 9.726 | ||||
| Compression ratio | 17:1 | 17.5:1 | |||
| Rated power KW(HP) | 196(266) | 213(290) | 247(336) | 273(371) | 302(410) |
| Rated speed(r/min) | 2200 | 2100 | |||
| Max. Torque(N.m) | 1100 | 1160 | 1350 | 1500 | 1650 |
| Speed at Max. torque(r/min) | 1100~1600 | ||||
| Idling speed(r/min) | 600±50 | ||||
| Specific Fuel consumption(g/kW.h) | ≤193 | ≤191 | |||
| 1m Noise dB(A) | ≤98 | ||||
| Bare mass(kg) | 850 | ||||
| Emission | Euro2 | ||||
Engine display
