Product Details:
|
| Model NO.: | TRUCK | Power: | Diesel |
|---|---|---|---|
| Load Capacity: | 21-30t | Emission Standard: | Euro 2 |
| Drive Wheel: | 6×4 | Engine Capacity: | ＞8L |
| Seats: | ≤5 | Horsepower: | 351-450hp |
| Tire Certification: | GCC, ISO | Tire Design: | Tubeless |
| Dumping Type: | Front Lifting Style | Condition: | Used |
| OEM: | Available | Quality Standard: | 100% Tested |
| MOQ: | 1 Set | Payment: | Tt, Paypal, Westernunion |
| Delivery: | 7 Working Days | Transport Package: | Wood |
| Specification: | Standard | Trademark: | Orginal |
| Origin: | Shandong, China | HS Code: | 8708931000 |
| Supply Ability: | 1000 Piece/Pieces Per Month | Package Size: | 1000.00cm * 800.00cm * 400.00cm |
| Package Gross Weight: | 20000.000kg | Lead Time: | 15 Days (1 - 10 Pieces) To Be Negotiated ( > 10 Pieces) |

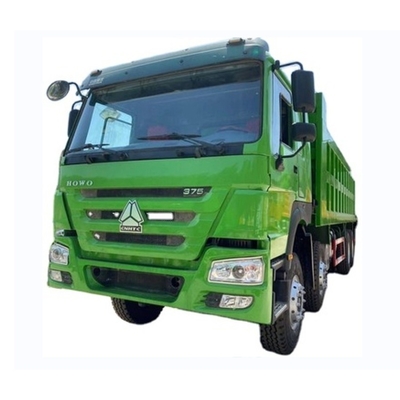

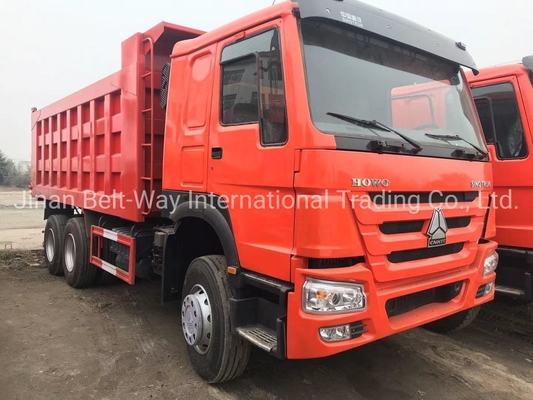

products Description | HOWO 6×4 Dump Truck | |
| Driving Type | Left Hand Driving |

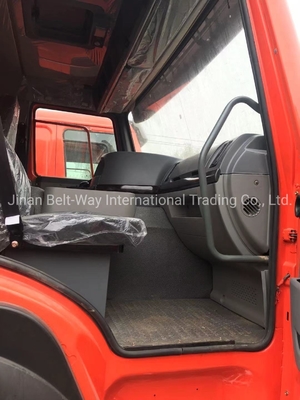

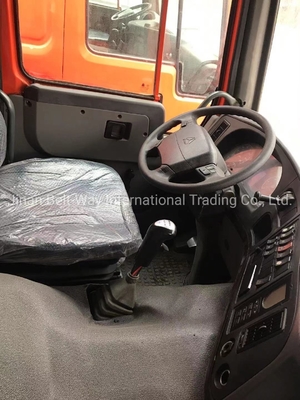

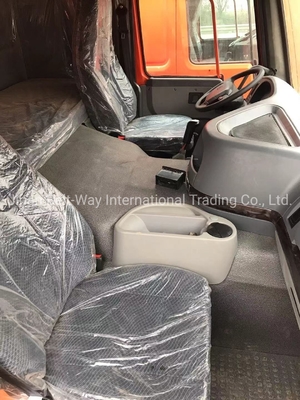

| Cabin | HW76 |
| Engine | Make: SINOTRUK wd615.47 |
| Transmission | HW19712, 12F & 2R, with PTO |
| Steering | Z F power steering, model Z F8118, hydraulic steering with power assitance |
| Front Axle | HF9 SSteering with doubleT-cross section beam |
| Rear Axle | AC16, 2×16000 KGSPressed axle housing, central single reduction with hub
reduction and with differential locks between wheels and axles.Ratio:5.73 |

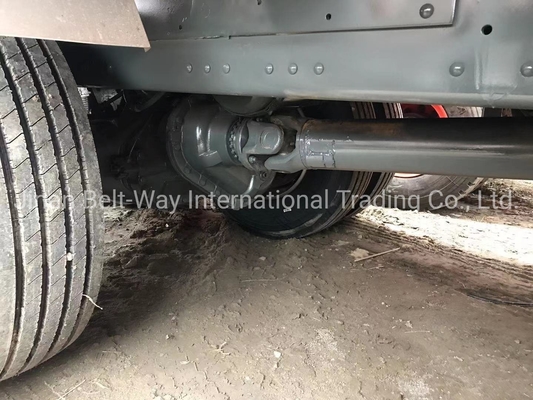

| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced
sub-frame all cold riveted cross members Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brakeParking brake (emergency brake):
spring energy, compressed air operating on front shaft and rear wheelsAuxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V,
5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires | 12.00r20, radial tires with one spare tire. |
| Fuel Tank | 300 L |
| Cargo Body | 5600*2300*1500 mm, Floor 8 mm and side 6 mm, |
| Overall Dimension | 8200*2550*3500 mm |
